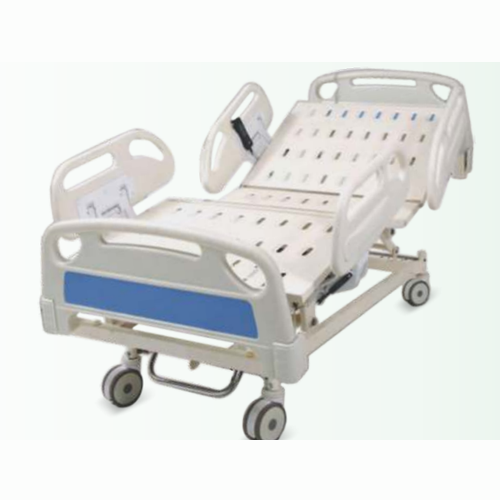

Description

Key Features

1. Advance linear actuator system [04Pcs Motor, 01Pc Control box, 01Pc Handset, 01Pc Nurse Control System (ACP)].

2. Four pieces individual side-rails, ABS moulded.

3. Heavy ABS Head & Foot Panel with locking.

4. 4 section top made up of Oval perforated CRCA M.S. Sheet.

5. Framework made up of M.S. tubes.

6. Bed mounted on 5” Central Locking ABS Castors, durable & quiet.

7. S.S. Telescopic I.V. Rod with 4 location.

8. Holder for Urine Bag.

9. Sitting position Adjustable.

10. Pre-treated & Epoxy Powder Coated finish.

11. Overall approx. size: 2090L x 900W x 550-800H mm.

12. Positions obtained by Hand Remote-

(i) Hi-Low

(ii) Backrest elevation

(iii) Knee rest elevation

(iv) Trendelenburg / Reverse Trendelenburg

13. Positions obtained / Functions on Nurse Control System (ACP)-

(i) Hi-Low with Locking function for handset

(ii) Backrest elevation with locking function for handset

(iii) Knee rest elevation with locking function for handset

(iv) Trendelenburg / Reverse Trendelenburg with locking function for handset
